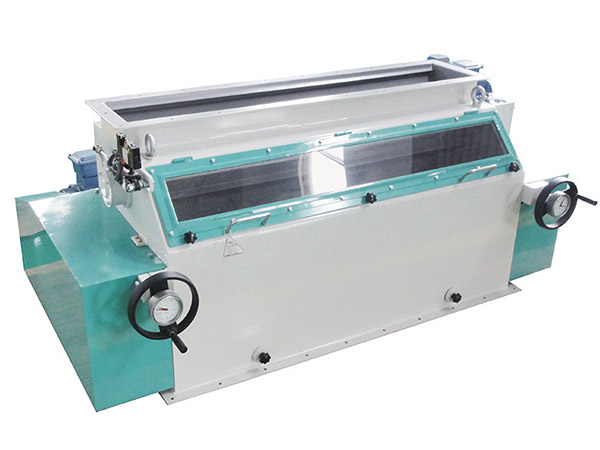

Roll Crumbler
Pellet crumble machine (Roller crusher) is a special equipment for crushing large grain into small grain.
SSLG series Pellet crumble machine is compact in structure and easy to adjust granulator degree.The roller differential transmission has good crushing effect, no crushing particles need to be passed by the bypass, and it can stop automatically.Belt transmission, smooth transmission, low noise.Reliable operation and convenient operation.
Roll Crumbler has the following features:
1. It utilizes different tooth form differential between the two rolls and realizes crushing of 1.8-5.0 particles. It has high end products yield, less classifying and material feeding back, reliable performance and easy operation and maintenance.
2. It can equip specific crushing roller according to different granularity for crushing.
3. It is widely used in livestock feed granules and aquatic granules crushing.
|
Model |
SSLG20×80 |
SSLG20×100 |
SSLG20×140 |
|
Roller model（D×L）（mm） |
Φ200×800 |
Φ200×1000 |
Φ200×1400 |
|
Fast roller speed（rpm） |
570 |
||
|
Slow roller speed（rpm） |
442 |
||
|
Capacity（t/h） |
3～6 |
6～8 |
8～12 |
|
Power（Kw） |
5．5+0.55 |
7.5+0.55 |
11+0.75 |
|
Motor |
Y132S-4 |
Y132M-4 |
Y160M-4 |
|
（L×W×H）（mm） |
1343×1275×880 |
1543×1275×880 |
1943×1275×880 |
